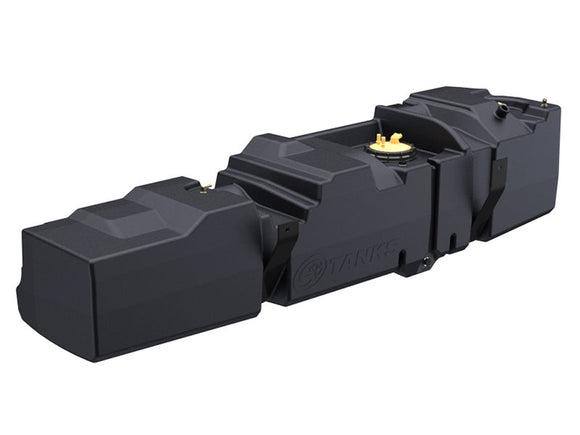

S&B 10-1011 60 Gallon Replacement Fuel Tank.
For 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 Ford 7.3L 6.0L Powerstroke, Crew Cab Short Bed
Note - Fuel sending unit is not included
This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
If your truck has the V shaped crossmember connected to the carrier bearing crossmember(see important note in instructions), the S&B Tank will not fit with this in place.
S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.
Do you have an Auxiliary Fuel Tank? Using these with our tanks will void the Lifetime Warranty.
STREET LEGAL IN ALL US STATES YES
TANK TYPE MIDSHIP
S&B CAPACITY (APPROXIMATE) 60 GALLONS
OEM CAPACITY 29 GALLONS
WEIGHT (DRY) 45LBS
GROUND CLEARANCE COMPARE TO OE TANK 2.9" LOWER THAN STOCK.
SUMP YES
DRAIN YES
SENDING UNIT OE
STRAPS INCLUDED YES
COMPATIBLE WITH OE SKID PLATE NO
COMPATIBLE WITH GOOSENECK AND 5TH WHEEL YES
TRANSFER PUMP READY YES
EMBEDDED FITTING THREAD SIZE 1/2" NPT
DIMENSIONS 79" X 17.37" X 19.37"
MORE FUEL. LESS HASSLE.
HOLDS 9 MORE GALLONS THAN COMPETITOR TANKS!
S&B's 60-gallon fuel tank directly replaces the OEM 29-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 9 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck! Go big or go home!
TRANSFER PUMP & AFTERMARKET LIFT PUMP
Save space in your truck bed and pull fuel out of your large S&B Tank with our GPI Transfer pump kit.
This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps.
