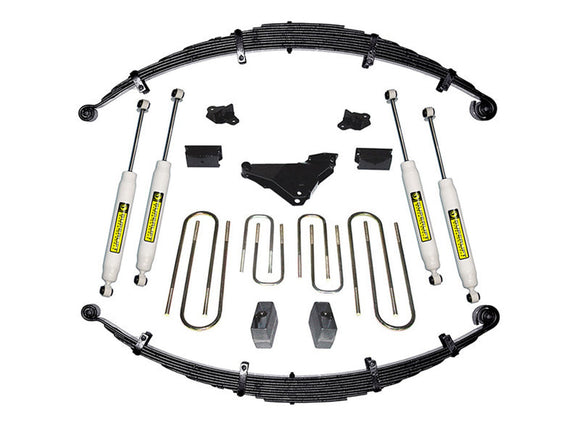

Superlift's complete front Superide leaf spring lift kit for the 2000-2005 Ford Excursion 4wd V-10 and diesel engine, providing 5” of lift height.
Replacement Superide springs provide front lift, while 4"blocks raise the rear. The lift kit also includes a track bar relocation bracket, to align the body with the front axle, front suspension compression bump-stops, hardware to prevent front sway bar preload, a complete U-bolt kit and front/rear Superide shocks.
Options include a factory replacement steering stabilizer cylinder, and a dual stabilizer kit.
- Track bar relocation bracket prevents steering wheel "kick"
- Rear lift via 4" blocks
- Front and rear Superlift Superide shocks included
- Limited Lifetime Warranty
- Satisfaction Guarantee
Note: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option's list or call our technical support line at 800-749-0688 for additional details.
Shocks: Superide Shocks
| FITMENT TABLE | |||
| YEARS | DRIVE | MAKE | MODEL |
| 2000-2005 | 4WD | Ford | Exursion |
| TIRE & WHEEL INFO | |||
| TIRE | WHEEL | BACKSPACING | OFFSET |
| 35 x 12.5 | 17 x 9 | 4.5 | - |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
Installation Notes:
- Installation time: 6 hours
- Difficulty level: 3 of 5
Additional InfoRear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approx. 2" of excess U-bolt length (that can be trimmed). Or for shorter U-bolts, refer to block chart and replace listed block kit with the non-overload application.
Rear lift based on vehicles with 2.5" tall factory. If vehicle equipped with 3.5" tall factory block expect slight rear to front rake.
