For
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 6.7L Cummins Diesel.
Includes the 68rfe-501 BILLET input shaft.
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 6.7L Cummins Diesel.
Includes the 68rfe-501 BILLET input shaft.
Includes the 68rfe-501 BILLET input shaft.

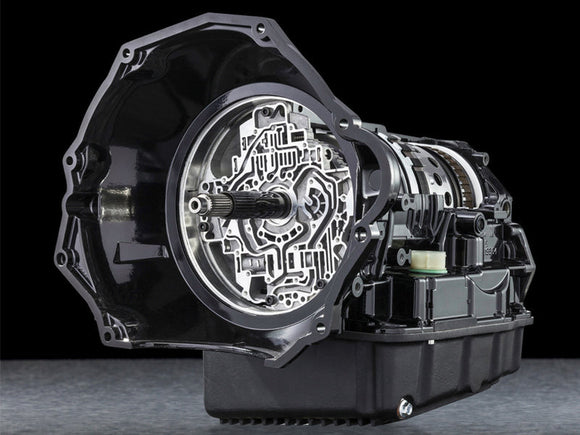

Dodge Rebuilt 68RFE Signature Series 550 Transmission
Revmax brings you our Signature Series 550 performance automatic transmission.Rated to hold up to 550HP at the rear wheels.These units are built to the most stringent tolerances by one expert technician from beginning to end, and each unit is signed by the technician when finished.We don’t just say we have pride in our transmission, we literally put our name on it. This transmission features the following:
** Trucks with tires that are larger than 35? will not be covered under warranty unless proof of a differential gear change is provided **
Disasembly Process and Cleaning
- Complete disassembly of the entire transmission, all wearable “soft parts” are discarded.
- Casing and housings are washed in our 190 degree hot wash tank.
- Hard parts are thoroughly inspected and then either discarded or hand washed
- Casing is thoroughly checked for any cracks or damage
Upgraded Internals Components
- Billet Stage 5 Triple Disc Torque Converter
- Revmax Proprietary 550 High Capacity Input Clutch Housing
- Custom Underdrive pressure plate and piston assembly
- Billet ZeroFlex 1? 6061 Billet Valve Body Plate w\ DuaLock filter support.
- RevMax leak free bonded separator plate that is 2.5x thicker than OEM.
- 4 clutch 2nd clutch with GPZ clutches
- Billet 2nd clutch piston assembly
- 4 clutch 4th Clutch pack with GPZ clutches
- Custom 4th clutch pressure plate
- Red Eagle High Performance Low /Reverse Clutches
- High Energy Reverse Clutches
- Revmax High Pressure Pump
- Revmax High Pressure Valve Body
- Brand New Internal Solenoid Pack
- Upgraded L/R Sprag to Spring and Roller Design
- Custom calibrated Revmax performance valve body, fully tested on our computerized valve body dyno
- Extra deep 4.5 quart additional cast aluminum pan with drain plug
- Billet Filter Screw
- Transmission is fully tested for hydraulic and performance integrity on our AMI Hydraulic test stand
- 2 year unlimited mileage warranty.
