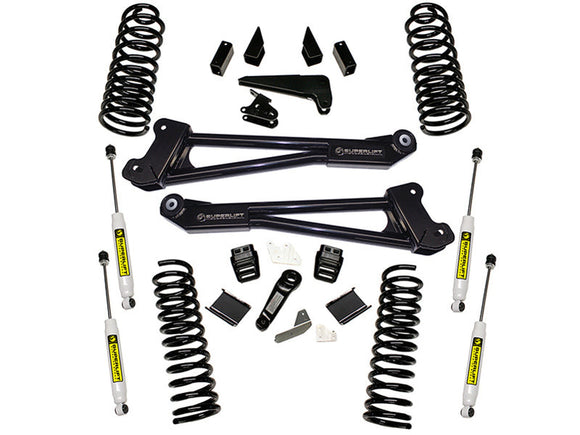

Features and Benefits:
- Replacement front spring improve ride quality while rear coil spacers maintain load capacity
- Massive replacement tubular radius arms with Cleveite bushings
- Offset for additional clearance of larger tires
- Radius arms offers maximum ground clearance
- Radius arms feature a "true flat" jack point surface
- Track bar relocation bracket prevents stud bind and steering wheel kick
- Pitman arm relieves drag link angle to prevent bump steer / wandering
- Superlift Superide Shocks are included, for all four corners, with this kit.
- Limited Lifetime Warranty
- Satisfaction Guarantee
- Made in the USA
Recommended Tire and Wheel Size:
- Wheel Size: 9" Wide
- Back Spacing: 4 1/2"
- Tire Size: 35 X 12.50
Can fit up to:
- Wheel Size: 9" Wide
- Back Spacing: 5 5/8"
- Max Tire Size: 37 X 12.50
Install Time and Difficulty:
- Install Time Hrs: 5-6
- Difficulty Level 1-5: 3
NOTE: Does not fit Power Wagon models.
NOTE: Does NOT fit Models with rear air suspension
Shocks: Superide Shocks
| FITMENT TABLE | |||
| YEARS | DRIVE | MAKE | MODEL |
| 2014-2017 | 4WD | Dodge | Ram 2500 |
| TIRE & WHEEL INFO | |||
| TIRE | WHEEL | BACKSPACING | OFFSET |
| 35 x 12.5 | 17 x 9 | 4.5 - 5 | - |
| 35 x 12.5 | 18 x 9 | 4.5 - 5 | - |
| 35 x 12.5 | 20 x 9 | 4.5 - 5 | - |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
Installation Notes
- Installation time: 7 hours
- Difficulty level: 3 of 5
