SUPERLIFT K987KG 4" KING Coilover Lift Kit With Replacement Radius Arms, 2011-2016 Ford F-250/350 4WD

Superlift SKU: K987KG

$5,699.99

$5,699.99

Shipping calculated at checkout

Shop Pay Interest-free payments on orders $50 or more. Learn more at checkout
SUPERLIFT K987KG 4" KING Coilover Lift Kit With Replacement Radius Arms.
For 2011, 2012, 2013, 2014, 2015, 2016 Ford F-250/350 4WD

    What is this?
  • This is a complete King Shocks coilover replacement radius arm suspension lift kit for the 2011-2016 Ford F-250/F-350 4wd – diesel engine; providing 4” of lift height
  • Includes track bar bracket and related brackets, rear blocks and rear King Shocks remote Reservoir shocks
  • Covered by our Limited Lifetime Warranty
  • This kit also comes in a Superlift Superide or 5100 Series Bilstein shock option
    What does it Include?

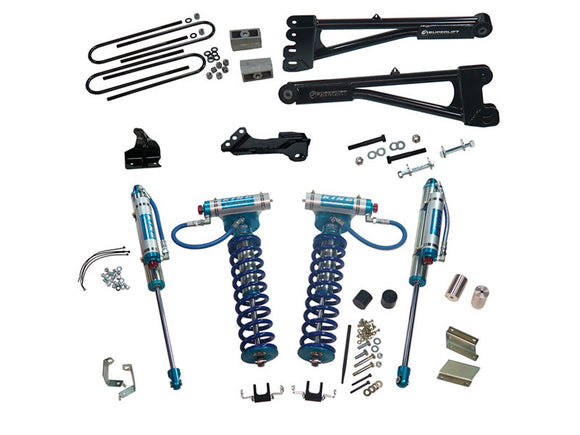

  • Replacement radius arms, track bar bracket, sway bar correction, rear block and u-bolt kit, and all hardware required specific to the 2011-2016 4wd Ford F-250/F-350 All Engines.

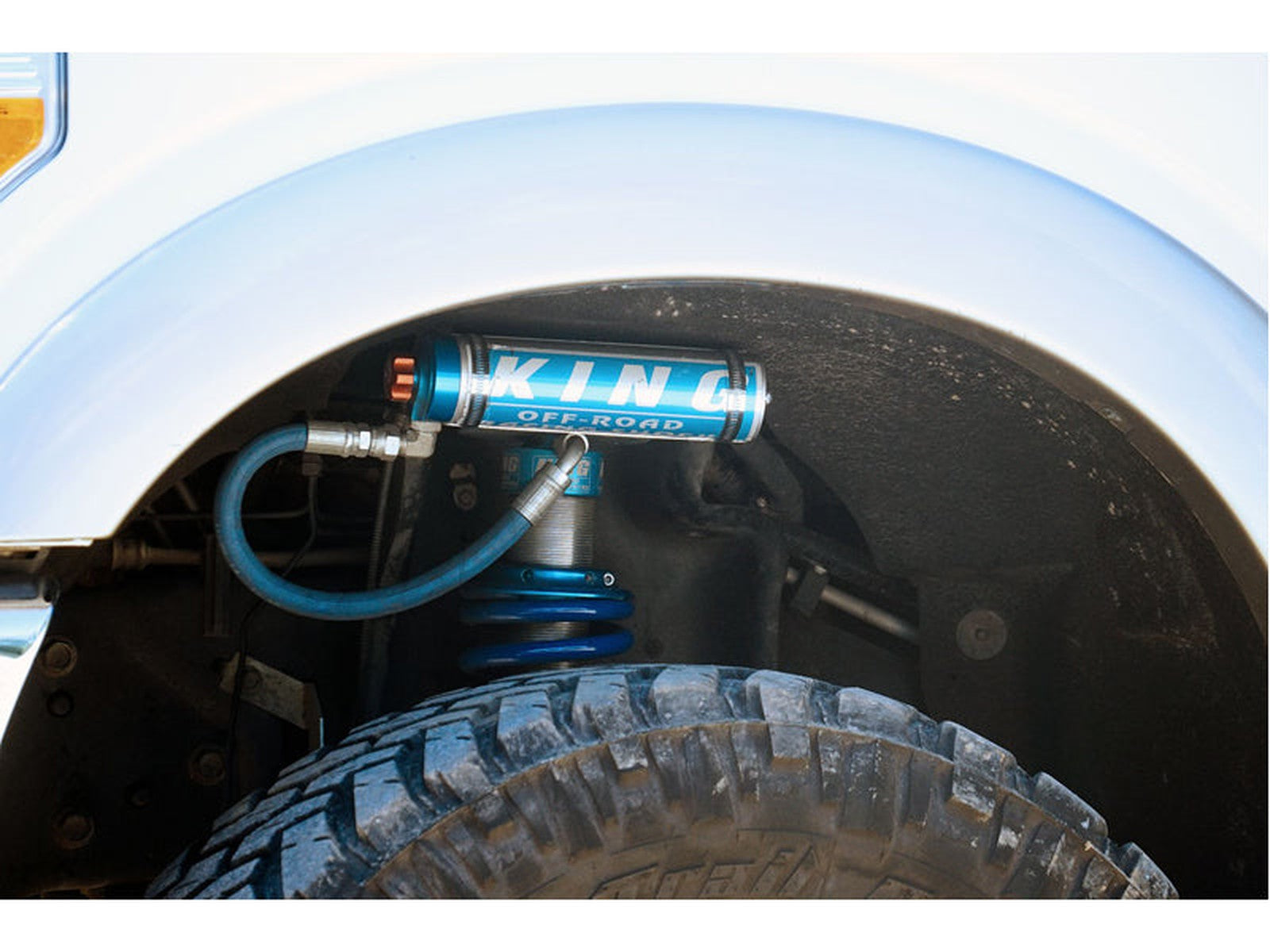

  • Superlift Edition KING Coilovers and Reservoir Rear Shocks.
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
  • The best customer service and technical help in the industry.
FITMENT TABLE
YEARS DRIVE MAKE MODEL
2011-2016 4WD Ford F-250 Super Duty
2011-2016 4WD Ford F-350 Super Duty
TIRE & WHEEL INFO
TIRE WHEEL BACKSPACING OFFSET
35 x 12.5 17 x 9 4.5 -
35 x 12.5 18 x 9 4.5 -
35 x 12.5 20 x 9 4.5 -

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes

  • Installation time: 8 hours
  • Difficulty level: 3 of 5

DOWNLOAD installation guide
