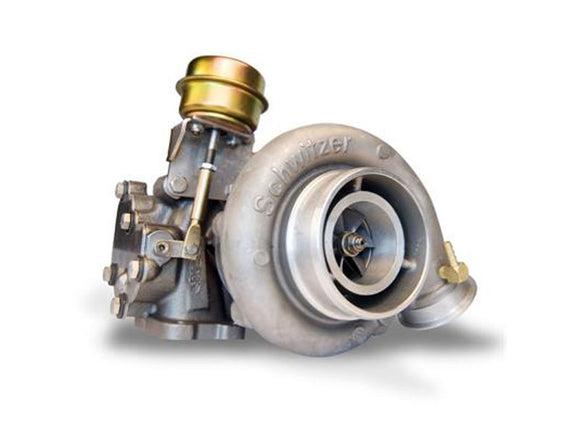

BD Diesel 1045220 Super "B" Single Turbocharger, 1994-2002 Dodge 5.9L Cummins

BD Diesel 1045220 Super "B" Single Turbocharger.
All of BD's single turbo systems are designed for easy, bolt-on replacement.
This is a complete kit, not just a turbo but all the parts needed for installation.
For 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 Dodge 5.9L Cummins

The BD-Power 1045220 Super "B" Single Turbocharger is the ultimate drop-in replacement for your 94-02 Dodge 5.9L Cummins. Designed in a joint engineering effort between BD Diesel Performance and Borg Warner Turbo Systems AirWerks program, the Super "B" Turbochargers for the 5.9 liter Cummins engine flow enough air for racing applications, yet are responsive and durable enough for street and heavy towing applications. Plus, they're backed by a one year factory warranty!

Turbocharger lag is usually the result of an improperly matched turbocharger. As the compressor wheel size is increased to meet the airflow requirements of the engine, it gets heavier, which hurts response time. BD's turbo systems, using Borg Warners unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, outperforms ball bearing turbochargers of a similar size.

Our unique dual-volute turbine housing picks up low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents pre-mature opening caused by high exhaust pressure. You can even fine-tune your BD/AirWerks turbo for ambient temperature and barametric pressure changes using BD's adjustable waste gate control.

Put simply, you'll get more power, quicker response, cooler EGT's and lower exhaust emissions with a BD/AirWerks turbocharger! And, you'll have the added benefit of proven journal bearing technology--the very same used in 99% of the turbochargers produced in the world since 1921.

SINGLE TURBO SYSTEMS

All of BD's single turbo systems are designed for easy, bolt-on replacement. This is a complete kit, not just a turbo but all the parts needed for installation. It has BD's adjustable waste gate, down pipe and for some applications an exhaust adapter is included for stock exhaust mounting. If you want the turbo seperately, just ask for it.

Super B Single: Designed for 94-07 applications, the Super B Single supports modified applications making up to 425 rwhp. The Super B single offers quick spool-up, cooler EGT's and no surging. It's ideal for street, towing and mild competition applications, and can easily be upgraded to a twin system for even more power.

1994-1999 stock engines have the 12 sq cm w/g hsg that can be quite restrictive when the power is increased above 300 flywheel HP and results in high exhaust temperature.

2001 automatic transmission equipped engines have a 9 or 10 sq cm hsg that is too restrictive for a high power increase (beyond the 300 hp)
