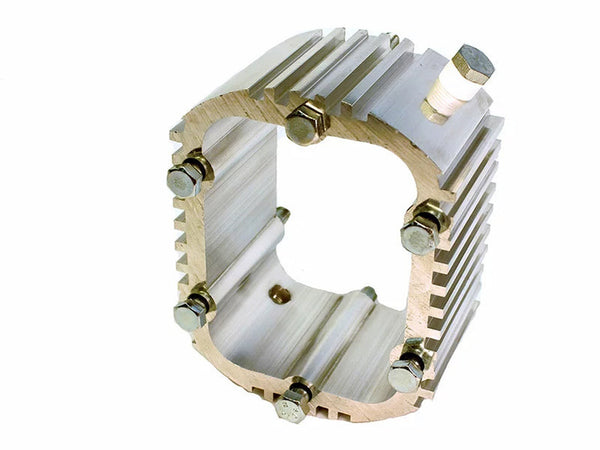

Fast Coolers Manual Transmission Cooler, Universal.
Extend the PTO provision of your manual transmission with heat dissipating aluminum and add 1 quart of lubricant per cooler (one side).
The benefits of upgrading an automatic transmission with a deep tranny pan has been widely popular for years, but why not manual transmissions? The benefits are easily the same, if not more, and fortunately, Fast Coolers has you covered with a line of coolers that merely replace the stock PTO covers for added fluid capacity and case rigidity.
Extend the PTO provision of your manual transmission with heat dissipating aluminum and add 1 quart of lubricant per cooler (one side). The aluminum covers can also be upgraded with the optional sight glass and add further rigidity. Otherwise, save some money and reuse your stock steel cover plate.
WHY FAST COOLERS?
A manual transmission creates more heat in overdrive, similar to an automatic in overdrive. That is one reason why automatics sometimes have a tow/haul button. Temperatures are often 30 degrees higher when towing in overdrive. Fast Coolers reduce the temperatures by 30 degrees with heat dissipating aluminum and 40 to 50% more oil capacity Just bolt it on and add more lubricant.
FEATURES & BENEFITS:
Replaces existing PTO Cover(s)
Sold as a pair (one for each side)
Adds two additional quarts of fluid to transmission (one quart per side)
Extruded heat-sink aluminum extends the PTO cover
1/4" NPT port allows you to add a temperature sensor
Magnetic drain plug
Cools transmission by 30 degrees on average
Adds rigidity to transmission case
Please confirm your exhaust clearance to PTO covers before ordering. You will need at least 3" of clearance between your existing PTO cover for adequate clearance.
G56 manual transmissions (2005.5+ Cummins) will require the additional hardware kit available from the menu
