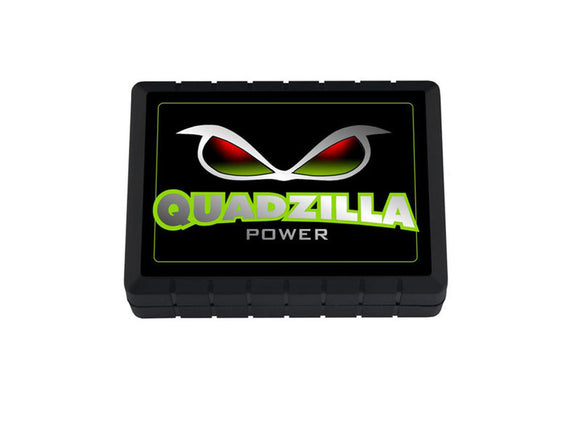

Quadzilla DXZT98 YZT+ Module, 1998.5, 1996, 1997, 1998, 1999, 2000 Dodge Ram 5.9L Cummins
1998.5-2000 DODGE 5.9L CUMMINS
The Quadzilla DXZT-98 XZT+ Module is in a class of its own when it comes to performance upgrades for your 1998.5-2000 Dodge 5.9L Cummins. This one of kind power module will provide an additional 65 HP and 200 Ft. Lbs. of torque to your truck. Installation is simple and only requires 2 simple connections to be made on your engine. You do not tap the pump wire and it is 100% invisible once removed. Adjustments on the fly are made simple with a 3 position toggle switch. There is an off setting, fuel mileage setting, and a horsepower setting available at your fingertips.
The XZT+ is built with an extremely powerful 32 bit processor. What this means to you is that Quadzilla can look at more parameters and provide better fueling and timing control than anyone else on the market. Quadzilla fueling and timing maps are more complex than anyone else and it provides the smoothest, most instantaneous power you have ever felt!
The XZT+ has the best throttle response of any module in its class, yet it is very docile and has none of the ugly characteristics that many of the other products on the market have.To make the XZT+ even more appealing, Quadzilla has priced this module to be the best value possible for your truck. Many of the other products on the market are hundreds of dollars more and do not even provide half of the features that the XZT+ does.
FEATURES:
- +65HP & 200 Ft-Lbs.
- Powerful 32 Bit Processor
- Easy Installation - No Pump Tap Required
Not available for sale in the state of California
XZT Tunes
File Name: XZT+_1000 - Factory Loaded Tune
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+1000
Features:
• Factory Tuning file that all XZT+ Modules are shipped with
----------
File Name: XZT+_1002
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+1002
Features:
• Factory Tuning file that all XZT+ Modules are shipped with
• Adds Cold Engine Protection set at 170 Deg Coolant Temperature
• Module will default to the OFF setting regardless of switch position while in Cold Engine Protection Mode
----------
File Name: XZT+_1006
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+1006
Features:
• Factory Tuning file that all XZT+ Modules are shipped with
• Adds Automatic 1200 RPM High Idle
• Hi Idle not for use with Factory High Idle
• Toggle switch must be in the OFF position in order for High Idle to work
• 1 Minute wait period before High Idle engages
• High Idle may be disabled by touching the accelerator pedal or by changing switch positions
• 2002 Trucks May also kill high idle with the brake pedal
• High Idle will engage regardless of temperature
----------
File Name: XZT+_1008
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+1008
Features:
• Factory Tuning file that all XZT+ Modules are shipped with
• Adds Automatic 1200 RPM High Idle
• Hi Idle not for use with Factory High Idle
• Adds Cold Engine Protection set at 170 deg Coolant Temperature
• High Idle will engage any time the vehicles is in warm up after 2 minutes of continuous idle regardless of switch position
• High Idle will only engage in the OFF setting once engine has reached 170 deg Coolant Temperature
• Module will default to the OFF setting regardless of switch position when Cold Engine Protection is enabled
• 1 Minute wait period before High Idle engages
• High Idle may be disabled by touching the accelerator pedal or by changing switch positions
• 2002 Trucks May also kill high idle with the brake pedal
• High Idle will engage regardless of temperature
----------
File Name: XZT+_1009
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+1009
Features:
• Factory Tuning file that all XZT+ Modules are shipped with
• Adds Automatic 1200 RPM High Idle
• Hi Idle not for use with Factory High Idle
• Toggle switch must be in the OFF position in order for High Idle to work
• 30 Second wait period before High Idle engages
• High Idle may be disabled by touching the accelerator pedal or by changing switch positions
• 2002 Trucks May also kill high idle with the brake pedal
• High Idle will engage regardless of temperature
----------
File Name: XZT+_1011
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+1011
Features:
• Factory Tuning file that all XZT+ Modules are shipped with
• Adds Automatic 1200 RPM High Idle
• Hi Idle not for use with Factory High Idle
• Adds Cold Engine Protection set at 170 deg Coolant Temperature
• High Idle will engage any time the vehicles is in warm up after 2 minutes of continuous idle regardless of switch position
• High Idle will only engage in the OFF setting once engine has reached 170 deg Coolant Temperature
• Module will default to the OFF setting regardless of switch position when Cold Engine Protection is enabled
• 30 Second wait period before High Idle engages
• High Idle may be disabled by touching the accelerator pedal or by changing switch positions
• 2002 Trucks May also kill high idle with the brake pedal
• High Idle will engage regardless of temperature
----------
XZT+_2000 series tunes have a more aggressive fueling & timing curve than the XZT+_1000 series tunes that results in better throttle response.
File Name: XZT+_2000
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+2000
Features:
• Aggressive Tuning file that can be optionally loaded onto the XZT+ Modules
• Considerably more aggressive than previous aggressive file Surging and Shuddering resolved with this tune on most vehicles
----------
File Name: XZT+_2001
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+2001
Features:
• Same Aggressive Tuning File as XZT+2000
• Adds Cold Engine Protection set at 140 Deg Coolant Temperature
• Module will default to the OFF setting regardless of switch position while in Cold Engine Protection Mode
----------
File Name: XZT+_2002
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+2002
Features:
• Same Aggressive Tuning File as XZT+2000
• Adds Cold Engine Protection set at 170 Deg Coolant Temperature
• Module will default to the OFF setting regardless of switch position while in Cold Engine Protection Mode
----------
File Name: XZT+_2006
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+2006
Features:
• Same Aggressive Tuning File as XZT+2000
• Adds Automatic 1200 RPM High Idle
• Hi Idle not for use with Factory High Idle
• Toggle switch must be in the OFF position in order for High Idle to work
• 1 Minute wait period before High Idle engages
• High Idle may be disabled by touching the accelerator pedal or by changing switch positions
• 2002 Trucks May also kill high idle with the brake pedal
• High Idle will engage regardless of temperature
----------
File Name: XZT+_2008
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+2008
Features:
• Same Aggressive Tuning File as XZT+2000
• Adds Automatic 1200 RPM High Idle
• Hi Idle not for use with Factory High Idle
• Adds Cold Engine Protection set at 170deg Coolant Temperature
• High Idle will engage any time the vehicles is in warm up after 2 minutes of continuous idle regardless of switch position
• High Idle will only engage in the OFF setting once engine has reached 170 deg Coolant Temperature
• Module will default to the OFF setting regardless of switch position when Cold Engine Protection is enabled
• 1 Minute wait period before High Idle engages
• High Idle may be disabled by touching the accelerator pedal or by changing switch positions
• 2002 Trucks May also kill high idle with the brake pedal
• High Idle will engage regardless of temperature
----------
File Name: XZT+_2011
Models: DXZ29802
Software Version: 20080128
Feature Code Enabled: XZT+2011
Features:
• Same Aggressive Tuning File as XZT+2000
• Adds Automatic 1200 RPM High Idle
• Hi Idle not for use with Factory High Idle
• Adds Cold Engine Protection set at 170 deg Coolant Temperature
• High Idle will engage any time the vehicles is in warm up after 2 minutes of continuous idle regardless of switch position
• High Idle will only engage in the OFF setting once engine has reached 170 deg Coolant Temperature
• Module will default to the OFF setting regardless of switch position when Cold Engine Protection is enabled
• 30 Second wait period before High Idle engages
• High Idle may be disabled by touching the accelerator pedal or by changing switch positions
• 2002 Trucks May also kill high idle with the brake pedal
• High Idle will engage regardless of temperature
